Ni-MH Battery

Ni-MH Button Cell Batteries

  • Specifications
  • Button Cells Designation System
  • Welding Tags Specifications
Ni-MH Button Cell Specifications
Model No. Volt Capacity  Dimensions (mm with tube) Standard Charge Trickle Charge Wt.
V mAh H Dia mA h mA g
8H 1.2 8 2.7±0.2 6.7±0.2 0.8 14 0.2 0.36
12H 1.2 15 3.2±0.2 11.6±0.2 1.5 14 0.45 1.3
15H 1.2 15 2.7±0.2 9.3±0.2 1.5 14 0.5 0.65
16H 1.2 18 5.3±0.2 7.9±0.2 1.8 14 0.54 1
30H 1.2 40 5.2±0.2 11.6±0.2 4 14 1.2 1.8
60H 1.2 80 6.1±0.2 15.2±0.2 8 14 2.4 3.5
60HT 1.2 80 6.1±0.2 15.2±0.2 8 14 2.4 3.5
100H 1.2 110 7.8±0.2 15.2±0.2 11 14 3.3 4.4
120H 1.2 170 5.3±0.2 15.1±0.2 × 23.5±0.2 17 14 5.1 5.7
170H 1.2 230 6.3±0.2 25.2±0.2 23 14 6.9 10.2
180H 1.2 180 5.7±0.2 14.0±0.2 × 25.6±0.2 18 14 5.4 6
180HT 1.2 180 5.7±0.2 14.0±0.2 × 25.6±0.2 18 14 5.4 6
210H 1.2 200 5.5±0.3 15.3±0.3 × 24.7±0.3 20 14 6 6.2
250H 1.2 280 7.4±0.2 25.2±0.2 28 14 8.4 11.3
280H 1.2 330 8.5±0.2 25.2±0.2 33 14 9.9 13.3

Note:

  1. Capacity obtained after charge at 0.1C for 14 hrs and discharge at 0.2C to 1.0V at 25oC.
  2. Battery manufacturing standard according to IEC 61951-2-2001 (4.4).
  3. "T" behind the model name stands for high temperature version, as 60HT, 180HT.
Q-Lite Designation System For Ni-MH Button Cells Assembly



280  H  3  A  3  H  (Mo)
   |     |    |   |    |    |     |____ Showing connector type
   |     |    |   |    |    |_______ Showing outlet directions of welding tags, leadwires or connector ("H" can also be "P","L","Y")
   |     |    |   |    |_________ Showing different shapes of welding tags, leadwires or connector
   |     |    |   |___________  Showing configuration shape of cells
   |     |    |_____________ Showing number of cells combined together
   |     |_______________  "H" refer to Ni_MH, while "K" to Ni-Cd
   |__________________  Showing type of single cell



Q-Lite Descriptive Shapes for Button Cells Assembly:




Q-Lite Outlet Directions of Welding Tags, Leadwires or Connector

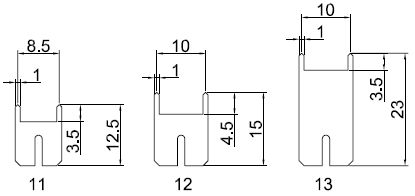

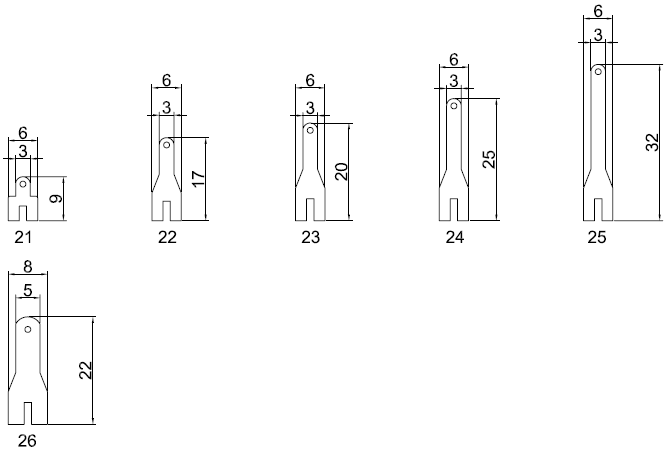

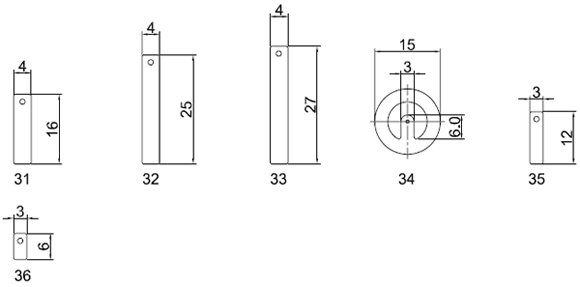

Q-Lite Welding Tags General Specifications

--The nickel-plated stainless sheet steel of 0.2mm thickness is applied for the following tags of
   Numbers 01-06, 08-011, 11-13, 21-26 and 31-36.

--The No. 07 welding tag is made of Ø0.8mm pure nickel material thread.

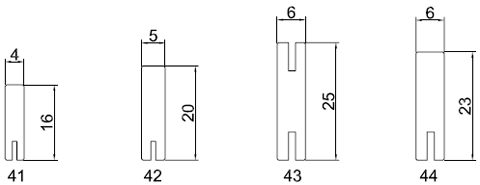

--The welding tags of Numbers 41-44 are stainless steel sheet.

--Welding tags classification:

a) "0" series


b) "1" series


c) "2" series


d) "3" series


e) "4" series
